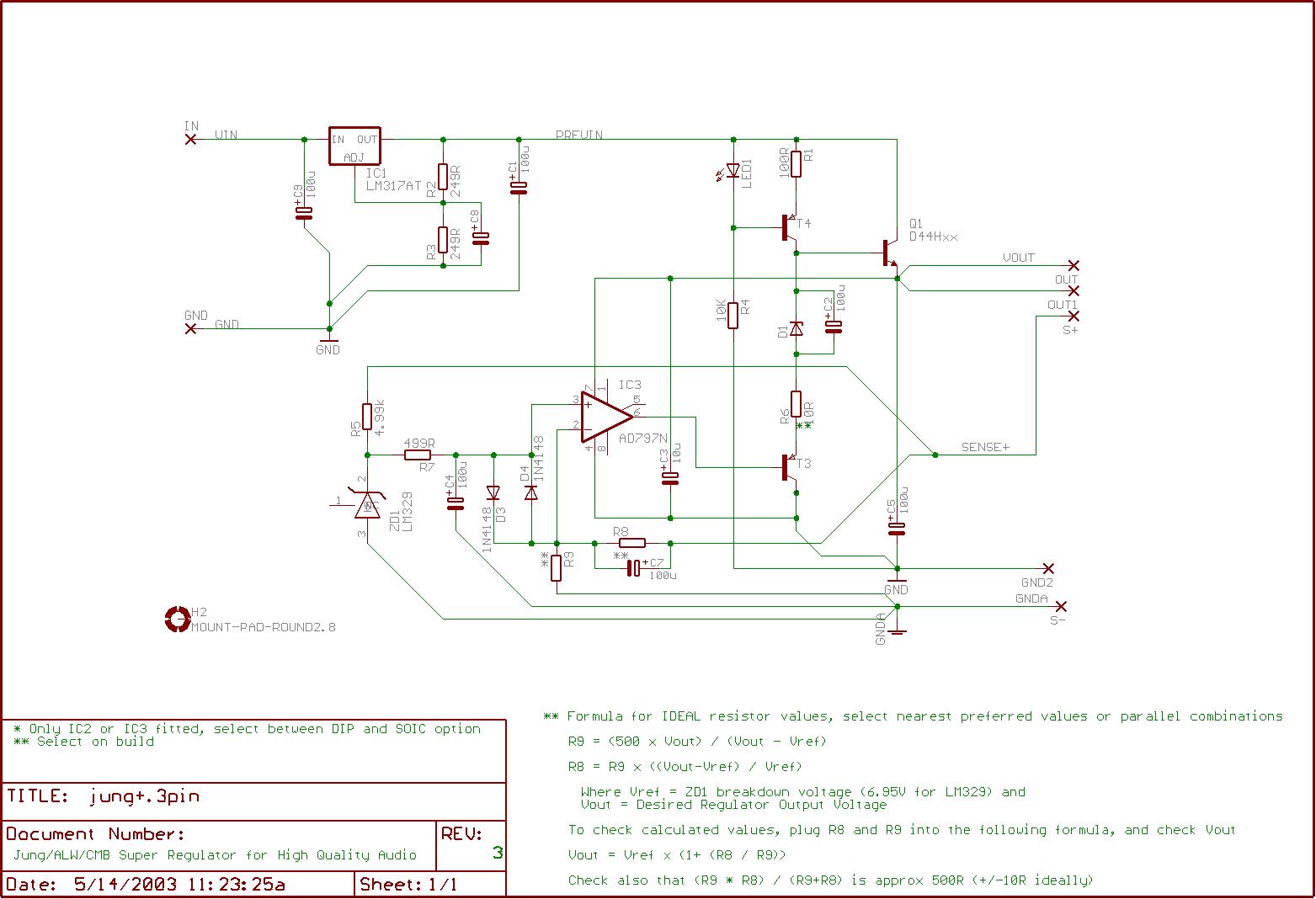

This board features a common linear regulator to reduce power supply ripple. It is then followed by a Walt Jung type high performance audio regulator.
This regulator is configured as a three terminal device and should be located very close to your circuitry. It was meant to directly replace a 78xx and 79xx three terminal regulator.
If you cannot place it close to the circuitry. you can wire in sense pin connections for improved performance.
It is possible to bypass the pre-regulator if cost is an issue. Or if your power supply already is regulated, and you cannot afford to drop another 2.5 volts
If you are looking for extremely low noise voltage regulation and very high line regulation. Then stop looking
The top of the board

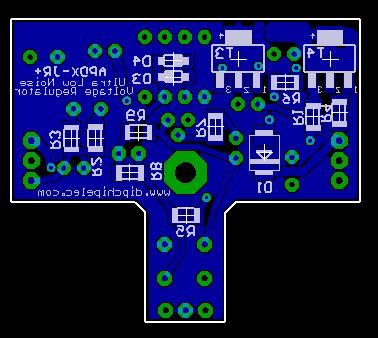

The bottom of the boars
